儀器簡介：

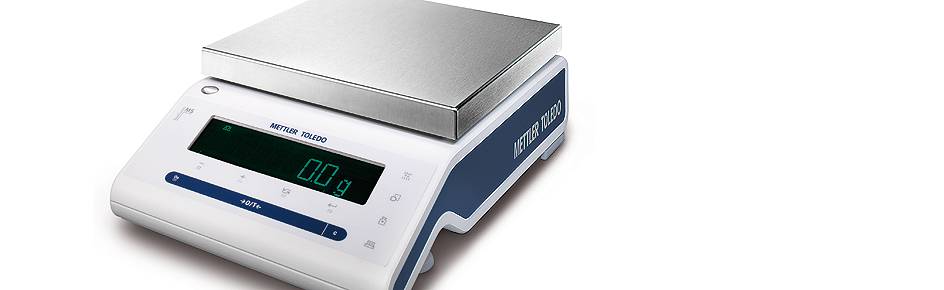

無論您進行簡單的日常工作，還是復雜的稱量過程，NewClassic MS精密天平憑借其卓越的稱量性能，快速準確的結果，幫助您提高生產力。具有單模塊傳感器(MonoBloc)和溫度漂移和時間觸發的全自動校準技術(FACT)的新一代NewClassic系列天平，為您的日常稱量工作提供全面的支持。
快速簡單的清潔: 清潔將變成簡單的工作，有了防風罩鎖定裝置(QuickLock)，通過幾個簡單步驟，即可拆卸防風罩，無需移動天平。所有防風罩玻璃均可直接使用洗碗機進行清洗。
友好的用戶界面: 高對比顯示屏(HCD)具有超大數字和清晰符號顯示，直觀的菜單確保用戶便捷的操作天平。此外，多達3個功能鍵(SmartKeys)可直接調用預設的稱量應用程序。
直接連接: 快速無誤的數據傳輸：內置RS232和USB通訊接口，方便連接電腦、打印機等外圍設備。
易于安裝: 前置水平調節腳和水平指示器，方便觀察和調節水平。水平鎖定裝置(LevelControl)，提供良好的穩定安全性。
標準配置：所有型號提供高對比顯示屏(HCD) 全金屬機架抵抗丙酮等化學試劑的腐蝕 溫度漂移和時間觸發的全自動校準技術(FACT) 塑料保護罩 下掛稱量鉤 單模塊傳感器(MonoBloc) 抗過載保護 抗過載保護 動態圖形顯示(SmartTrac)，直接顯示天平已使用的稱量范圍 多達3個功能鍵(SmartKeys)，可直接調用預設的稱量應用程序 菜單保護功能 16個稱量單位切 可在全量程范圍內去皮 環境適配器
內置多種稱量應用程序：計件稱量、百分比稱量、動態稱量、檢重稱量、自由因子、統計功能、配方稱量、總和計算
具有多種語言：德語、英語、法語、西班牙語、意大利語、波蘭語、捷克語
|
Technical data
|
MS303S
MS303SE*
|
MS403S
|
MS603S
|
MS1003S
|
MS1602S
MS1602SE*
|
MS3002S
MS3002SE*
|
|
Limit values
|
|
|
Maximum capacity
|
320 g
|
420 g
|
620 g
|
1020 g
|
1620 g
|
3200 g
|
|
Readability
|
0.001 g
|
0.001
|
0.001
|
0.001
|
0.01 g
|
0.01 g
|
|
Repeatability (at nominal load)
|
0.001 g
|
0.001
|
0.001
|
0.001
|
0.01 g
|
0.01 g
|
|
Linearity deviation
|
0.002 g
|
0.002 g
|
0.002 g
|
0.002 g
|
0.02g
|
0.02g
|
|
Sensitivity temperature drift
|
3 ppm/°C
|
3 ppm/°C
|
3 ppm/°C
|
3 ppm/°C
|
3 ppm/°C
|
3 ppm/°C
|
|
Typical values
|
|
|
Repeatability (at nominal load)
|
0.7 mg
|
0.7 mg
|
0.7 mg
|
0.7 mg
|
0.007 g
|
0.007 g
|
|
Linearity deviation
|
0.6 mg
|
0.6 mg
|
0.6 mg
|
0.6 mg
|
0.006 g
|
0.006 g
|
|
USP Minimum Weight 1)
|
1.4 g
|
1.4 g
|
1.4 g
|
1.4 g
|
14 g
|
14 g
|
|
Minimum weight (acc. to 1%, k=2, typical)
|
0.14 g
|
0.14 g
|
0.14 g
|
0.14 g
|
1.4 g
|
1.4 g
|
|
Settling time
|
1.5 s
|
1.5 s
|
1.5 s
|
1.5 s
|
1.5 s
|
1.5 s
|
|
Balance dimensions (W x D x H in mm)
|
204x347
x283
|
204x347
x283
|
204x347
x283
|
204x347
x283
|
194x347
x99
|
194x347
x99
|
|
Weighing pan dimensions (mm)
|
127x127
|
127x127
|
127x127
|
127x127
|
170x200
|
170x200
|
|
Usable height of draft shield (mm)
|
168
|
168
|
168
|
168
|
|
|
|
Weight of balance
|
5.5 kg
5.4 kg(SE)
|
5.5 kg
|
5.5 kg
|
5.5 kg
|
4.8 kg
4.7 kg(SE)
|
4.8 kg
4.7 kg(SE)
|
|
Technical data
|
MS4002S
|
MS6002S
|
MS10002S
|
MS6001S
|
MS8001S
MS8001SE*
|
|
Limit values
|
|
|
Maximum capacity
|
4200 g
|
6200 g
|
10200 g
|
6200 g
|
8200 g
|
|
Readability
|
0.01 g
|
0.01 g
|
0.01 g
|
0.1 g
|
0.1 g
|
|
Repeatability (at nominal load)
|
0.01 g
|
0.01 g
|
0.01 g
|
0.1 g
|
0.1 g
|
|
Linearity deviation
|
0.02 g
|
0.02 g
|
0.02 g
|
0.2 g
|
0.2 g
|
|
Sensitivity temperature drift
|
3 ppm/°C
|
3 ppm/°C
|
3 ppm/°C
|
5 ppm/°C
|
5 ppm/°C
|
|
Typical values
|
|
|
Repeatability (at nominal load)
|
0.007 g
|
0.007 g
|
0.007 g
|
0.07 g
|
0.07 g
|
|
Linearity deviation
|
0.006 g
|
0.006 g
|
0.006 g
|
0.06 g
|
0.06 g
|
|
USP Minimum Weight 1)
|
14 g
|
14 g
|
14 g
|
140 g
|
140 g
|
|
Minimum weight (acc. to 1%, k=2, typical)
|
1.4 g
|
1.4 g
|
1.4 g
|
14 g
|
14 g
|
|
Settling time
|
1.5 s
|
1.5 s
|
1.5 s
|
1 s
|
1 s
|
|
Balance dimensions (W x D x H in mm)
|
194x347x99
|
194x347x99
|
194x347x99
|
194x347x99
|
194x347x99
|
|
Weighing pan dimensions (mm)
|
170x200
|
170x200
|
170x200
|
190x226
|
190x226
|
|
Weight of balance
|
4.8 kg
|
4.8 kg
|
4.8 kg
|
5.3 kg
|
5.3 kg
5.2 kg(SE)
|
|
Technical data
|
MS4002SDR
|
MS6002SDR
|
|
Limit values
|
|
|
Maximum capacity
|
4200 g
|
6200 g
|
|
Maximum capacity, fine range
|
820 g
|
1220 g
|
|
Readability
|
0.1 g
|
0.1 g
|
|
Readability, fine range
|
0.01 g
|
0.01 g
|
|
Repeatability (at nominal load)
|
0.1 g
|
0.1 g
|
|
Repeatability, fine range (at nominal load)
|
0.01 g
|
0.01 g
|
|
Linearity deviation
|
0.2 g
|
0.2 g
|
|
Linearity deviation, fine range
|
0.02 g
|
0.02 g
|
|
Sensitivity temperature drift
|
3 ppm/°C
|
3 ppm/°C
|
|
Typical values
|
|
|
Repeatability (at nominal load)
|
0.05 g
|
0.05 g
|
|
Repeatability, fine range (at nominal load)
|
0.007 g
|
0.007 g
|
|
Linearity deviation
|
0.02 g
|
0.02 g
|
|
Linearity deviation, fine range
|
0.006 g
|
0.006 g
|
|
USP Minimum Weight 1)
|
14 g
|
14 g
|
|
Minimum weight (acc. to 1%, k=2, typical)
|
1.4 g
|
1.4 g
|
|
Settling time
|
1.5 s
|
1.5 s
|
|
Balance dimensions (W x D x H in mm)
|
194x347x99 mm
|
194x347x99 mm
|
|
Weighing pan dimensions (mm)
|
170x200 mm
|
170x200 mm
|
|
Weight of balance
|
4.8 kg
|
4.8 kg
|
* Adjustment with an external weight (without FACT); 1) Typical minimum sample weight according to USP <41>; measurement at ≤ 5% load
|
MS精密天平
|
型號
|
最大稱量/可讀性
|
備注
|
|
|
MS303S/01
|
320 g/0.001g
|
|
|
|
MS403S/01
|
420 g/0.001g
|
|
|
|
MS603S/01
|
620 g/0.001g
|
|
|
|
MS1003S/01
|
1020 g/0.001g
|
|
|
|
MS1602S/01
|
1620 g/0.01g
|
|
|
|
MS3002S/01
|
3200 g/0.01g
|
|
|
|
MS4002S/01
|
4200 g/0.01g
|
|
|
|
MS4002SDR/01
|
820 g/0.01g
4200 g/0.1g
|
|
|
|
MS6002S/01
|
6200 g/0.01g
|
|
|
|
MS6002SDR/01
|
1220 g/0.01g
6200 g/0.1g
|
|
|
|
MS6001S/01
|
6200 g/0.1g
|
|
|
|
MS8001S/01
|
8200 g/0.1g
|
|
|
|
MS10002S
|
10200 g/0.01g
|
|
|
|
MS303SE/01
|
320 g/0.001g
|
|
|
|
MS1602SE/01
|
1620 g/0.01g
|
|
|
|
MS3002SE/01
|
3200 g/0.01g
|
|
|
|
MS8001SE/01
|
8200 g/0.1g
|
|
|
|
MS6001S/02
|
6200 g/0.1g
|
上海組裝
|
|
|
MS8001S/02
|
8200 g/0.1g
|
|
|
MS8001SE/02
|
8200 g/0.1g
|
|
